Revolving Solids Cylindrical Shells Method

: derived from surface area of cylinder =

r corresponds to x
hcorresponds to y
Use when shape has a hole

More difficult to setup, but most effective
Very similar to washer method

Revolving Solids Cylindrical Shells Method

Find the volume of the solid that results from revolving the area bounded by y = x², y = 0, and x = 4 around the y-axis.

Find the lower bound of the integral (we're already handed the upper bound for x)
x² = 0
x = 0
V = 2 π∫₀⁴ x (x²) dx
V = 2π[(x⁴)/4] |₀⁴
V = 2π[(4⁴)/4]

V = 128π

Find the volume of the solid that results from revolving the area bound by y = [1/x], x = 1, and x = 2 around the y-axis.

V = 2π∫₁² x[[1/x] − 0] dx
V = 2π∫₁² 1 dx
V = 2πx |₁²
V = 2π(2 − 1)

V = 2π

Find the volume of the solid that results from revolving the area bound by y = sinx², y = 0, and x = 1 around the y-axis.

x² = 0
x = 0
V = 2 π∫₀¹ x[sinx²] dx
V = 2 π∫₀¹ x sinx² dx
u = x²
du = 2x dx
V = 2 π[1/2] ∫₀¹ sinu du
V = π(−cosx²) |₀¹
V = π(−cos1 + cos0)
V = π(1 − cos1)

V = π(1 − cos1)

Find the volume of the solid that results from revolving the area bound by y = [1/2] e^x², y = 0, x = 0, and x = 1 around the y-axis.

V = 2 π∫₀¹ x [1/2] e^x² dx
u = x²
du = 2x dx
V = 2π[1/2] [1/2] ∫₀¹ e^u du
V = [(π)/2] e^u |₀¹
V = [(π)/2] e^x² |₀¹
V = [(π)/2] (e¹ − e⁰)

V = [(π)/2] (e¹ − 1)

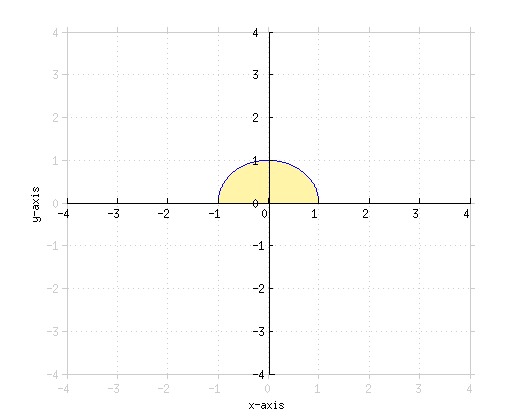

Find the volume of the solid that results from revolving the area bound by y = √{1 − x²} and y = 0 from x = 0 to x = 1 around the y-axis.

The function is undefined for x <−1 and x > 1
Let's find the points where the two curves intersect
x-axis is y = 0
√{1 − x²} = 0
1 − x² = 0
x² = 1
x = −1, 1
The intersections and all values of x in between are defined
V = (2π) ∫₀¹ x √{1 − x²} dx
u = 1 − x²
du = −2x dx
V = 2π[(−1)/2] ∫₀¹ u^[1/2] du
V = −π[(u^[3/2])/([3/2])] |₀¹
V = [(−2π)/3] (1 − x²)^[3/2] |₀¹
V = [(−2π)/3] ( (1 − 1)^[3/2] − 1^[3/2])
We've found the volume of a half-sphere of radius 1

V = [(2 π)/3]

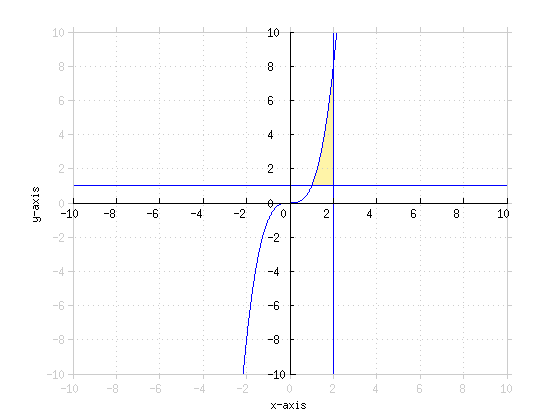

Find the volume of the solid that results from revolving the area bound by y = x³, y = 1, and x = 2 around the y-axis.

Find the x value where the two curves intersect for the other bound of the integral
x³ = 1
x = 1
V = 2π∫₁² x[x³ − 1] dx
V = 2π∫₁² x⁴ − x dx
V = 2π([(x⁵)/5] − [(x²)/2]) |₁²
V = 2π([32/5] − 2 − ([1/5] − [1/2]))

V = [(47π)/5]

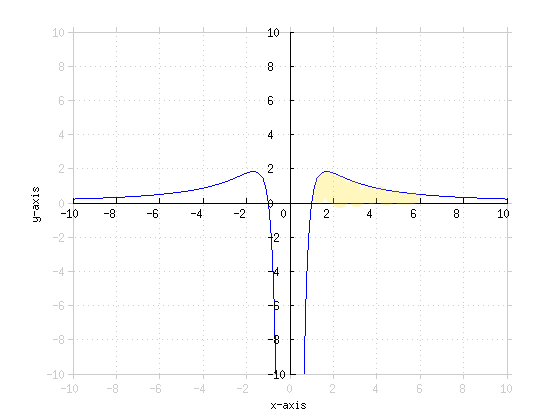

Find the volume of the solid that results from revolving the area in between by y = [10 lnx/(x²)] and y = 0 from x = 1 to x = 6 around the y-axis.

V = 2 π∫₁⁶ x [[10 lnx/(x²)]] dx
V = 20 π∫₁⁶ [lnx/x] dx
u = lnx
du = [1/x] dx
V = 20 π∫₁⁶ u du
V = 20π[(u²)/2] |₁⁶
V = 20π[((lnx)²)/2] |₁⁶
V = 10 π((ln6)² − (ln1)²)

V = 10 π(ln6)²

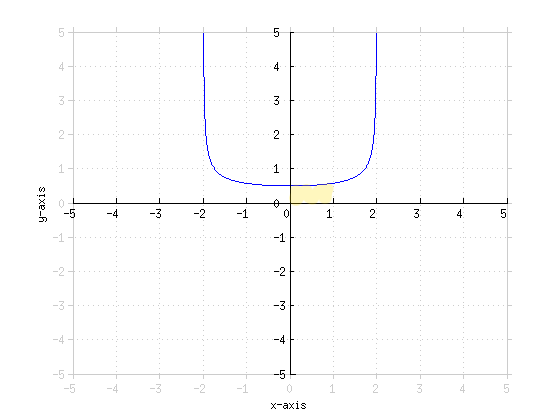

Find the volume of the solid that results from revolving the area bound by y = [1/(√{4 − x²})], x = 0, x = 1 and y = 0 around the y-axis.

V = 2 π∫₀¹ x[[1/(√{4 − x²})]] dx
u = 4 − x²
du = −2x dx
V = 2 π[(−1)/2] ∫₀¹ [1/(√u)] du
V = −π∫₀¹ u^−[1/2] du
V = −π[1/([1/2])] u^[1/2] |₀¹
V = −2 π(4 − x²)^[1/2] |₀¹
V = −2π(√3 − √4)

V = 2π(2 − √3)

Find the volume of the solid that results from revolving the area bound by y = 2x, y = 0, and x = 4 around the x-axis.

Let's rewrite this in terms of x, since we're rotating about the x-axis
y = 2x
x = [1/2] y
Find the bounds of the integral
[1/2] y = 4
y = 8
V = 2 π∫₀⁸ y[4 − [1/2] y] dy
V = 2 π∫₀⁸ 4y − [1/2] y² dy
V = 2 π(2y² − [(y³)/6]) |₀⁸
V = 2 π(2(64) − [(8³)/6] − 0)
V = 2 π(128 − [512/6])

V = [(256π)/3]

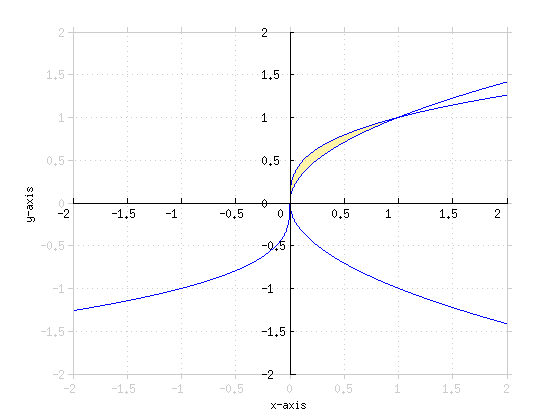

Find the volume of the solid that results from revolving the area bound by x = y³ and x = y² around the x-axis.

y³ = y²
y = 0, 1
V = 2 π∫₀¹ y[y² − y³] dy
V = 2 π∫₀¹ y³ − y⁴ dy
V = 2 π([(y⁴)/4] − [(y⁵)/5]) |₀¹
V = 2 π([1/4] − [1/5] − 0)

V = [(π)/10]

« Previous Question | Next Question »

*These practice questions are only helpful when you work on them offline on a piece of paper and then use the solution steps function to check your answer.

Answer

Revolving Solids Cylindrical Shells Method

Lecture Slides are screen-captured images of important points in the lecture. Students can download and print out these lecture slide images to do practice problems as well as take notes while watching the lecture.

Intro

Revolving Solids: Cylindrical Shells Method

Example 1

Example 2

Example 3

Example 4

Example 5

Intro 0:00
Revolving Solids: Cylindrical Shells Method 0:09

Volume Of A Solid
Formula

Example 1 2:56
Example 2 7:28
Example 3 11:39
Example 4 17:36
Example 5 21:45
