Revolving Solids Known Cross Sections

Finding volume of solid with known cross sections and bounds

Find area of known cross-section
Substitute bounding functions to variables in area equation appropriately
Evaluate integral of area of known cross-section

Knowing derivations of disk, washer, and cylindrical formulas dramatically improves understanding of known cross-sections volumes

Revolving Solids Known Cross Sections

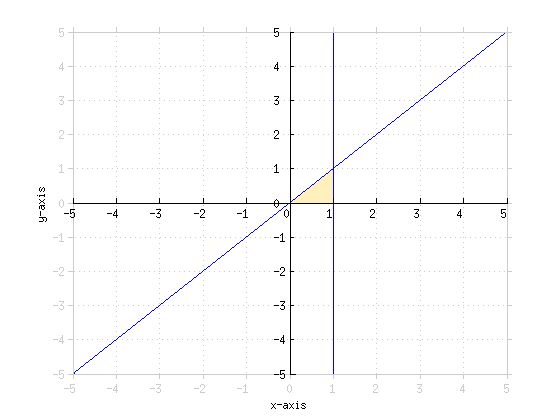

Find the volume of a solid whose base is defined by the region bounded by y = x, y = 0, and x = 1 with the diameters of semi-circle cross-sections along the y-axis.

Area of a semi-circle = [1/2] πr²
V = [1/2] π∫₀¹ ([x/2])² dx
V = [(π)/8] [(x³)/3] |₀¹

V = [(π)/24]

Find the volume of a solid whose base is defined by the region bounded by y = sinx and y = 0 from x = 0 to x = π with the square cross-sections.

A = l²
V = ∫₀^π y² dx
V = ∫₀^π sin² x dx
V = ∫₀^π ([(1 − cos2x)/2]) dx
V = [1/2] ∫₀^π 1 − cos2x dx
V = [1/2] (∫₀^π dx − ∫₀^π cos2x dx)
u = 2x
du = 2 dx
V = [1/2] (x |₀^π − [1/2] sin2x |₀^π)

V = [(π)/2]

Find the volume of a solid whose base is defined by the region bounded by y = x² and y = x with equilateral triangle cross-sections along the y-axis.

Area of equilateral triangle = [(√3)/4] l²
Intersection points
x² = x
x = 0, 1
In between 0 and 1, x ≥ x²
l = x − x²
V = [(√3)/4] ∫₀¹ (x − x²)² dx
V = [(√3)/4] ∫₀¹ x⁴ − 2x³ + x² dx
V = [(√3)/4] ([(x⁵)/5] − [(x⁴)/2] + [(x³)/3]) |₀¹
V = [(√3)/4] ([1/5] − [1/2] + [1/3] − 0)

V = [(√3)/120]

Find the volume of a solid whose base is defined by the region bounded by y = x² and y = x with square cross-sections along the x-axis.

This time, we're taking triangles parallel to the x-axis
We need to rewrite both of the equations in terms of x
x² = y
x = ±√y
The intersection is in the first quadrant, so we only care about the positive value
x = √y
Intersects at y = 0, 1
A = l²
l = √y − y
V = ∫₀¹ (√y − y)² dy
V = ∫₀¹ (y − 2y√y + y²) dy
V = ∫₀¹ (y − 2 y^[3/2] + y²) dy
V = [(y²)/2] − [(4 y^[5/2])/5] + [(y³)/3] |₀¹
V = [1/2] − [4/5] + [1/3]

V = [1/30]

Find the volume of a solid whose base is defined by the region bounded by y = 0, y = 2, x = 0, and x = 6 with semi-circle cross-sections along the x-axis.

The area bound by those lines is simply a square, with lines parallel to the axes.
A = [1/2] πr²
r = [6/2]
V = [(π)/2] ∫₀² 3² dy
V = [(π)/2] 9x |₀²

V = 9π

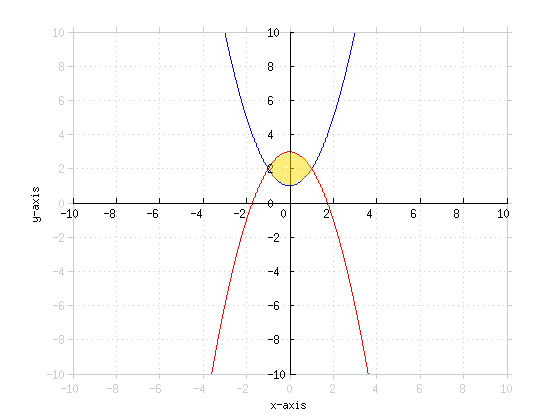

Find the volume of a solid whose base is defined by the region bounded by y = x² + 1 and y = −x² + 3 with semi-circle cross-sections along the y-axis.

Find their intersection points
x² + 1 = −x² + 3
2x² = 2
x = −1, 1
A = [1/2] πr²
r = [((−x² + 3) − (x² + 1))/2]
V = [(π)/2] ∫₋₁¹ (−x² + 1)² dx
V = [(π)/2] ∫₋₁¹ x⁴ − 2x² + 1 dx
V = [(π)/2] ([(x⁵)/5] − [(2x³)/3] + x) |₋₁¹
V = [(π)/2] ([1/5] − [2/3] + 1 − ([(−1)/5] − [(−2)/3] − 1))
V = [(π)/2] ([1/5] − [2/3] + 1 + [1/5] − [2/3] + 1)

V = [(8π)/15]

Find the volume of a solid whose base is defined by the region bounded by y = cosx and y = 0 from x = 0 to x = [(π)/2] with square cross-sections along the y-axis.

V = ∫₀^[(π)/2] cos² x dx
V = ∫₀^[(π)/2] [(1 + cos2x)/2] dx
V = [1/2] (x + [1/2] sin2x) |₀^[(π)/2]
V = [1/2] ([(π)/2] + 0)

V = [(π)/4]

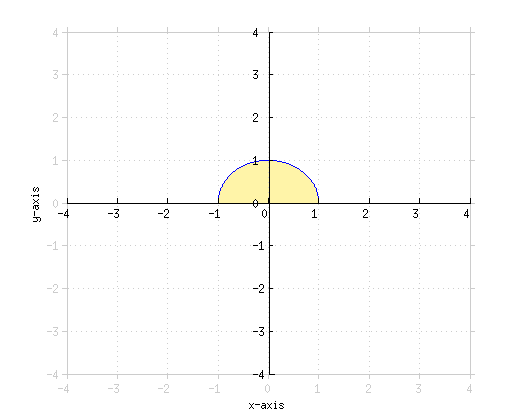

Find the volume of a solid whose base is defined by the region bounded by y = √{1 − x²} and y = 0 with semi-circle cross-sections along the y-axis.

V = [(π)/2] ∫₋₁¹ ([(√{1 − x²})/2])² dx
V = [(π)/8] ∫₋₁¹ 1 − x² dx
We can use symmetry
V = [(π)/4] ∫₀¹ 1 − x² dx
V = [(π)/4] (x − [(x³)/3]) |₀¹
V = [(π)/4] (1 − [1/3] − 0)

V = [(π)/6]

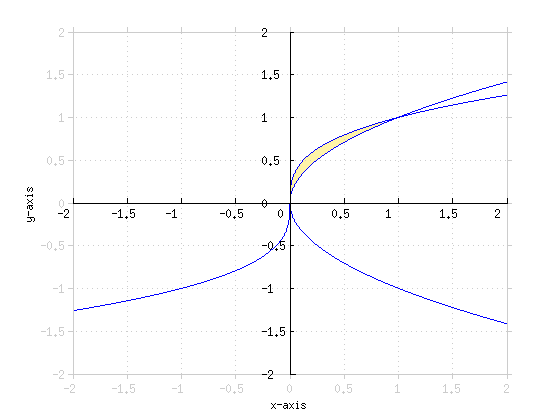

Find the volume of a solid whose base is defined by the region bounded by x = y³ and x = y² with square cross-sections along the x-axis.

V = ∫₀¹ (y² − y³)² dy
V = ∫₀¹ y⁴ − 2 y⁵ + y⁶ dy
V = ([(y⁵)/5] − [(y⁶)/3] + [(y⁷)/7]) |₀¹
V = [1/5] − [1/3] + [1/7]

V = [1/105]

Find the volume of a solid whose base is defined by the region bounded by x = y³ and x = y² with square cross-sections along the y-axis.

Rewrite in terms of y
y = ³√{x} and y = ±√x
First quadrant again, so we're only interested in the positive
V = ∫₀¹ (√x − ³√{x})² dx
V = ∫₀¹ x − 2 x^[5/6] + x^[2/3] dx
V = ([(x²)/2] − [(12 x^[11/6])/11] + [(3 x^[5/3])/5]) |₀¹
V = [1/2] − [12/11] + [3/5]

V = [1/110]
