Graphing Quadratic Functions

The graph of a quadratic function is a parabola.
Use the axis of symmetry to help you graph a parabola. Graph the right or left half and then reflect the graph across the axis of symmetry.
The maximum or minimum value of the function occurs at the vertex. Use the formula for the vertex to find the maximum or minimum.

Graphing Quadratic Functions

Find the equation of the axis of symmetry, the coordinates of the vertex and graph f(x) = x² − 4

Axis of Symmetry:
x=−[b/2a]
a = 1, b = 0,
x = − [0/2] = 0
Draw vertical, dashed line through x = 0
Vertex Coordinates:
(− [b/2a],f( − [b/2a] )
a = 1, b = 0,
(0,f(0))
f(0) = − 4
(0, − 4)
Points to Graph: Choose 3 points after the axis of symmetry. Since axis is located at x = 0, choose three points after the x = 0 mark. You may also choose 3 points before
x
1
2
3
y = f(x) = x² − 4
− 3
0
5

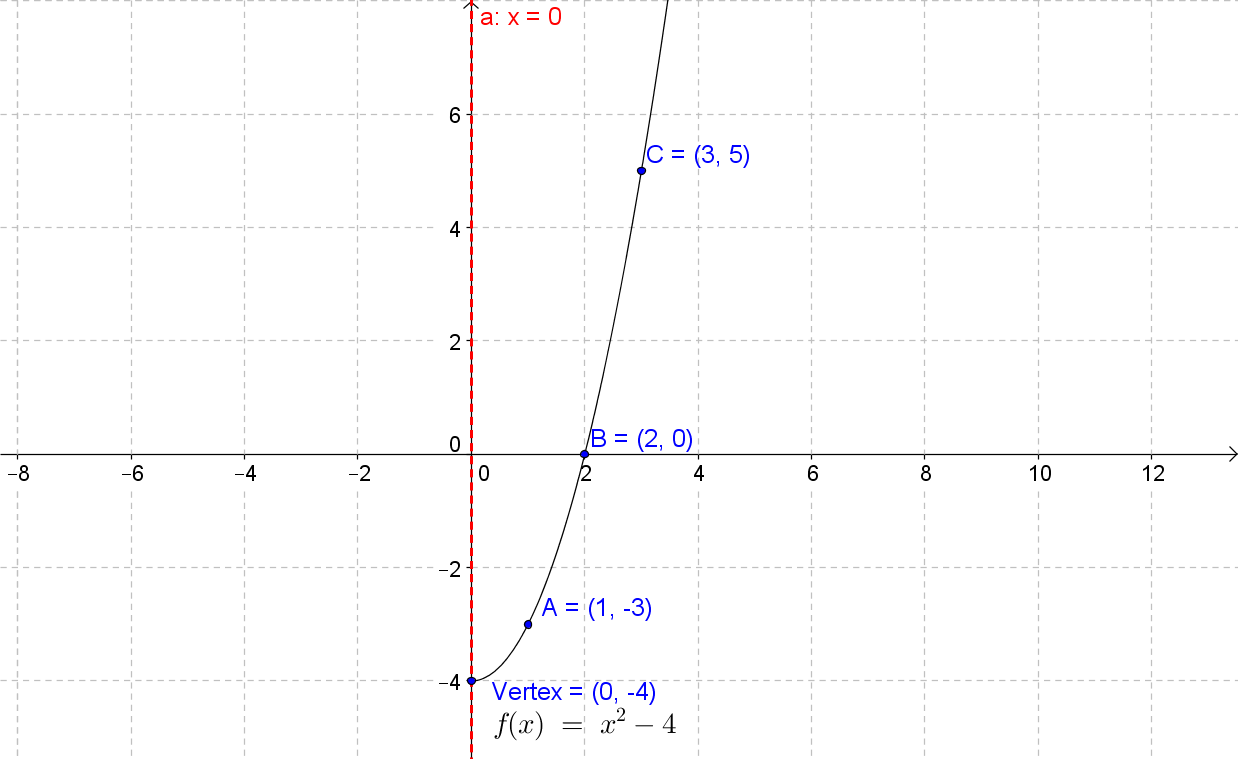

You will notice that only half the parabola is shown with points x = 1, 2, 3. To Draw the other half
use the fact that Quadratics are Symmetric about their axis of Symmetry.
Point Symmetric with A will be 1 unit on the left of x = 0 at ( − 1, − 3)
Point Symmetric with B will b 2 units on the left of x = 0, at ( − 2,0)
Point Symmetric with C will be 3 units on the left of x = 0, at ( − 3,5)
Plot and draw a smooth curve.

Find the equation of the axis of symmetry, the coordinates of the vertex and graph f(x) = x² − 6x + 4

Axis of Symmetry:
x = − [b/2a]
a = 1, b = − 6,
x = − [( − 6)/2] = 3
Draw vertical, dashed line through x = 3
Vertex Coordinates:
( − [b/2a],f( − [b/2a] )
a = 1, b = − 6,
(3,f(3))
f(3) = 3² − 6(3) + 4
= 9 − 18 + 4 = − 5
(3, − 5)
Points to Graph: Choose 3 points after the axis of symmetry. Since axis is located at x = 3, choose three points after the x = 3 mark. You may also choose 3 points before
x
4
5
6
y = f(x) = x² − 6x + 4
− 4
− 1
4

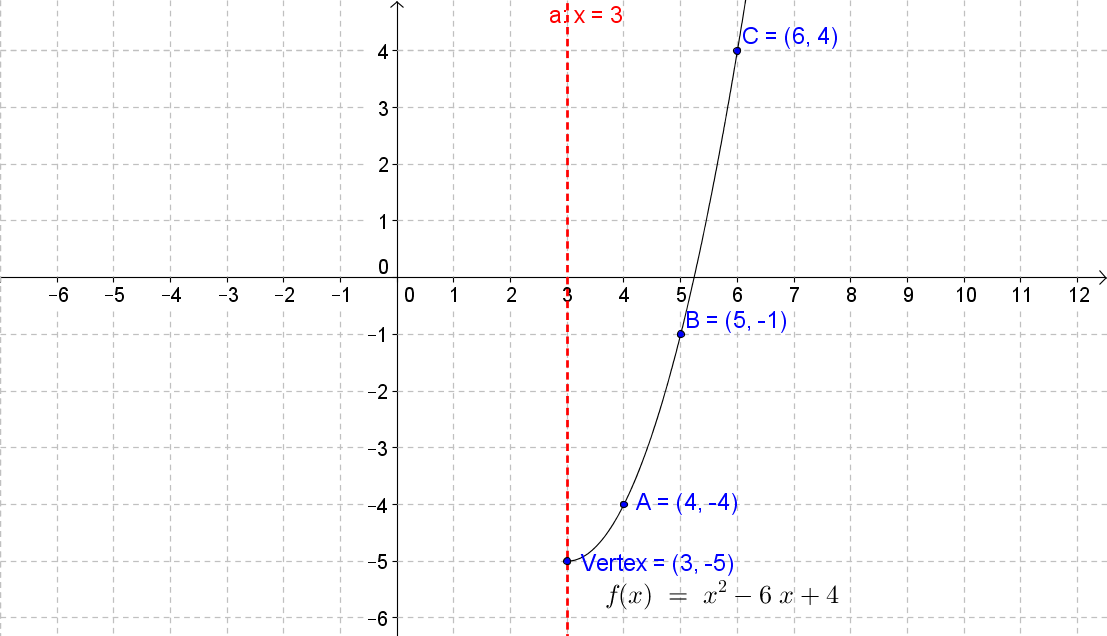

You will notice that only half the parabola is shown with points x = 4, 5, 6. To Draw the other half
use the fact that Quadratics are Symmetric about their axis of Symmetry.
Point Symmetric with A will be 1 unit on the left of x = 3 at (2, − 4)
Point Symmetric with B will b 2 units on the left of x = 3, at (1, − 1)
Point Symmetric with C will be 3 units on the left of x = 3, at (0,4)
Plot and draw a smooth curve.

Find the equation of the axis of symmetry, the coordinates of the vertex and graph f(x) = 2x² − 8x + 8

Axis of Symmetry:
x = − [b/2a]
a = 2, b = − 8,
x = − [( − 8)/2(2)] = [8/4] = 2
Draw vertical, dashed line through x = 2
Vertex Coordinates:
( − [b/2a],f( − [b/2a] )
a = 2, b = − 8,
(2,f(2))
f(2) = 2(2)² − 8(2) + 8
= 8 − 16 + 8 = 0
(2,0)
Points to Graph: Choose 3 points after the axis of symmetry. Since axis is located at x = 2, choose three points after the x = 2 mark. You may also choose 3 points before
x
3
4
5
f(x) = 2x² − 8x + 8
2
8
18
You will notice that only half the parabola is shown with points x = 3, 4, 5. To Draw the other half
use the fact that Quadratics are Symmetric about their axis of Symmetry.
Point Symmetric with A will be 1 unit on the left of x = 2 at (1,2)
Point Symmetric with B will b 2 units on the left of x = 2, at (0,8)
Point Symmetric with C will be 3 units on the left of x = 2, at ( − 1,18)
Plot and draw a smooth curve.

Find the equation of the axis of symmetry, the coordinates of the vertex and graph f(x) = x² + 6x + 8

Axis of Symmetry:
x = − [b/2a]
a = 1, b = 6,
x = − [6/2] = − 3
Draw vertical, dashed line through x=-3
Vertex Coordinates:
( − [b/2a],f( − [b/2a] )
( − 3,f( − 3))
f( − 3) = ( − 3)² + 6( − 3) + 8
= 9 − 18 + 8 = − 1
( − 3, − 1)
Points to Graph: Choose 3 points after the axis of symmetry. Since axis is located at x = 3, choose three points after the x = 3 mark. You may also choose 3 points before
x
− 2
− 1
0
y = f(x) = x² + 6x + 8
0
3
8

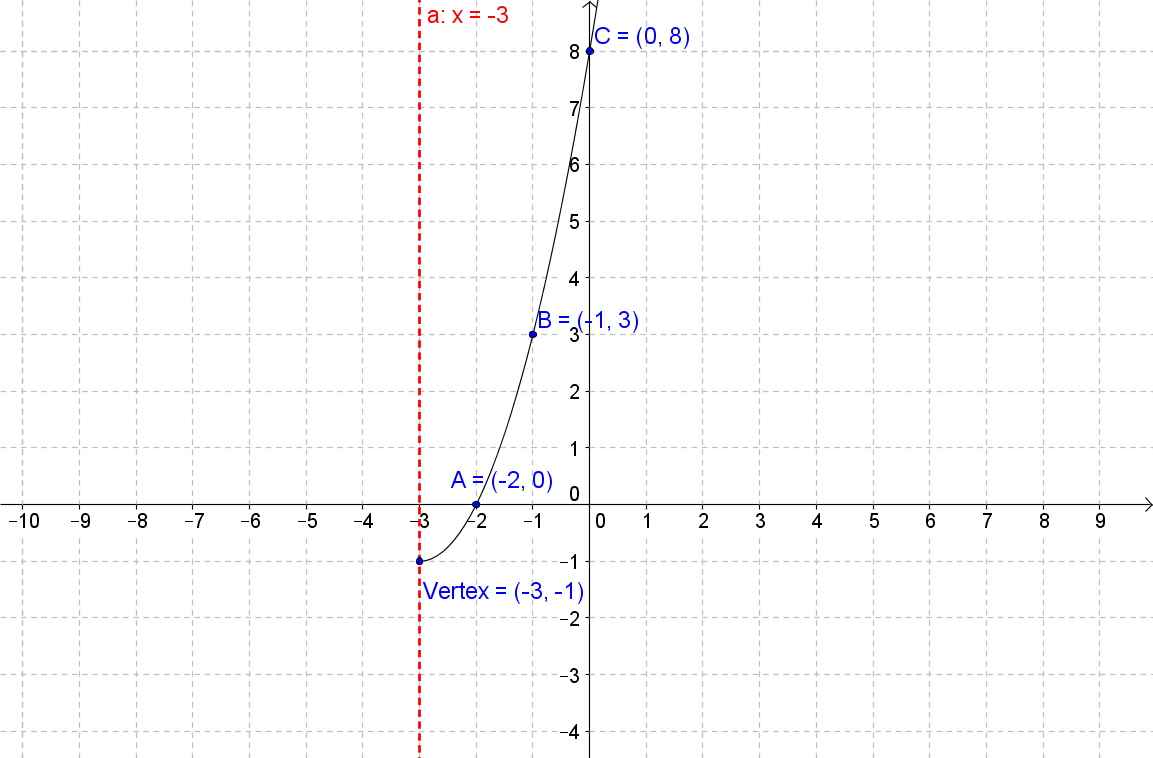

You will notice that only half the parabola is shown with points x = − 2, − 1, 0. To Draw the other half
use the fact that Quadratics are Symmetric about their axis of Symmetry.
Point Symmetric with A will be 1 unit on the left of x = − 3 at ( − 4,0)
Point Symmetric with B will b 2 units on the left of x = − 3, at ( − 5,3)
Point Symmetric with C will be 3 units on the left of x = − 3, at ( − 6,8)
Plot and draw a smooth curve.

Determine whether the function has a maximum or a minimum.
Find the max or min, and state the domain and range.
f(x) = − x² + 10x − 2

Max or Min:
a = -1, b = 10, c = -2
Because ä" is negative, this quadratice is a maximum
Find Max:
a = -1, b = 10, c = -2
x=−[b/2a]
x = − [b/2a] = − [10/(2( − 1))] = 5
To find the maximum, plug in x = 5 into the quadratic
f(x) = − x² + 10x − 2
f(5) = − (5)² + 10(5) − 2
f(5) = − 25 + 50 − 2 = 23
Domain: All Real Numbers
Range: Given that this quadratic is a maxium, the values taken up by ÿ" cannont exceed the maximum value, therefore,
Range: All Real Numbers for y ≤ 23

The Quadratic is a Maximum;
Max = 23;
Domain = All Real Numbers;
Range = All Real Numbers for y ≤ 23

Determine whether the function has a maximum or a minimum.
Find the max or min, and state the domain and range.
f(x) = x² − 2x − 1

Max or Min:
a = 1, b = -2, c = -1
Because ä" is positive, this quadratice is a minimum
Find Min:
a = 1, b = -2, c = -1
x=−[b/2a]
x = − [b/2a] = − [(−2)/2] = 1
To find the minimum, plug x=1 into the quadratic
f(x) = − x² + 10x − 2
f(1) = (1)² − 2(1) − 1
f(1) = 1 − 2 − 1 = − 2
Domain: All Real Numbers
Range: Given that this qudratic is a minimum, the value taken up by ÿ" cannont be below the minimum value, therefore,
Range = All Real Numbers for y ≥ −2

This quadratice is a minimum;
Min = -2;
Domain = All Real Numbers;
Range = All Real Numbers for y ≥ −2

Determine whether the function has a maximum or a minimum.
Find the max or min, and state the domain and range.
f(x) = − 3x² − 12x − 1

Max or Min:
a = -3, b = -12, c = -1
Because ä" is negative, this quadratice is a maximum
Find Max:
a = -3, b = -12, c = -1
x=−[b/2a]
x = − [b/2a] = − [(−12)/(2(−3))] = −2
To find the maximum, plug x=-2 into the quadratic
f(x) = − 3x² − 12x − 1
f( − 2) = − 3( − 2)² − 12( − 2) − 1
f( − 2) = − 12 + 24 − 1 = 11
Domain: All Real Numbers
Range: Given that this quadratic is a maxium, the values taken up by ÿ" cannont exceed the maximum value, therefore,
Range: All Real Numbers for y ≤ 11

This quadratice is a maximum; Max = 11;
Domain = All Real Numbers;
Range = All Real Numbers for y ≤ 11

Determine whether the function has a maximum or a minimum.
Find the max or min, and state the domain and range.
f(x) = − 3x² − 6x

Max or Min:
a = -3, b = -6, c = 0
Because ä" is negative, this quadratice is a maximum
Find Max:
a = -3, b = -6, c = 0
x=−[b/2a]
x = − [b/2a] = − [(−6)/(2(−3))] = −1
To find the maximum, plug x=-1 into the quadratic
f(x) = − 3x² − 6x
f( − 1) = − 3( − 1)² − 6( − 1)
f( − 1) = − 3 + 6 = 3
Domain: All Real Numbers
Range: Given that this quadratic is a maxium, the values taken up by ÿ" cannont exceed the maximum value, therefore,
Range: All Real Numbers for y ≤ 3

This quadratice is a maximum; Max = 3;
Domain = All Real Numbers;
Range = All Real Numbers for y ≤ 3

Determine whether the function has a maximum or a minimum.
Find the max or min, and state the domain and range.
f(x) = 2x² − 8x + 4

Max or Min:
a = 2, b = -8, c = 4
Because ä" is positive, this quadratice is a minimum
Find Min:
a = 2, b = -8, c = 4
x=−[b/2a]
x = − [b/2a] = − [(−8)/2(2)] = 2
To find the minimum, plug x=2 into the quadratic
f(x) = 2x² − 8x + 4
f(2) = 2(2)² − 8(2) + 4
f(2) = 8 − 16 + 4 = − 4
Domain: All Real Numbers
Range: Given that this qudratic is a minimum, the value taken up by ÿ" cannont be below the minimum value, therefore,
Range = All Real Numbers for y ≥ −4

This quadratice is a minimum;
Min = -4;
Domain = All Real Numbers;
Range = All Real Numbers for y ≥ −4

Determine whether the function has a maximum or a minimum.
Find the max or min, and state the domain and range.
f(x) = 5x² + 20x + 4

Max or Min:
a = 5, b = 20, c = 4
Because ä" is positive, this quadratice is a minimum
Find Min:
a = 5, b = 20, c = 4
x=−[b/2a]
x = − [b/2a] = − [20/2(5)] = −2
To find the minimum, plug x=-2 into the quadratic
f(x) = 5x² + 20x + 4
f( − 2) = 5( − 2)² + 20( − 2) + 4
f( − 2) = 20 − 40 + 4 = − 16
Domain: All Real Numbers
Range: Given that this qudratic is a minimum, the value taken up by ÿ" cannont be below the minimum value, therefore,
Range = All Real Numbers for y ≥ −16

This quadratice is a minimum;
Min = -16;
Domain = All Real Numbers;
Range = All Real Numbers for y ≥ −16
